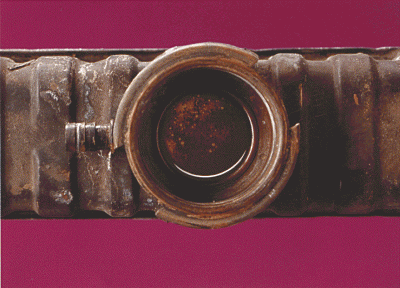

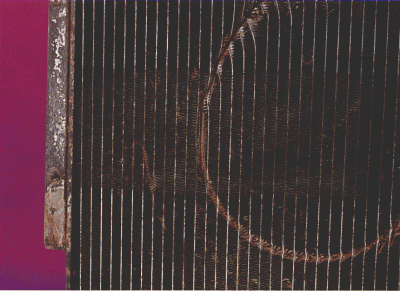

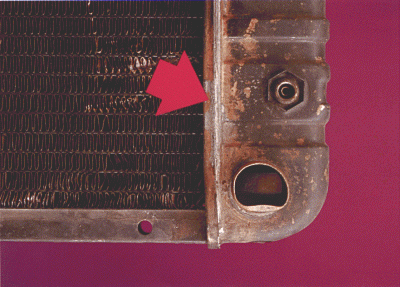

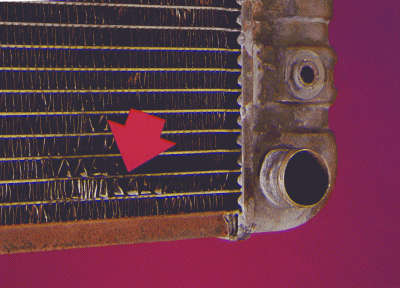

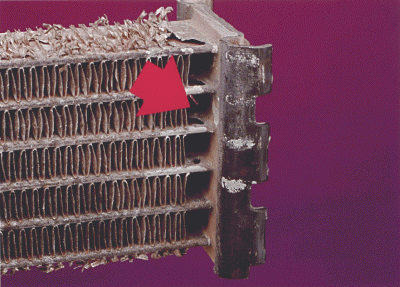

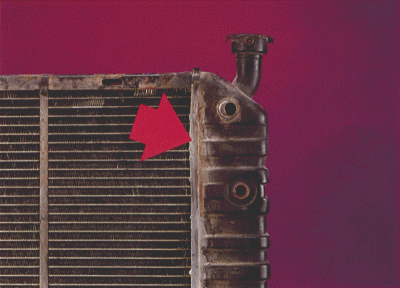

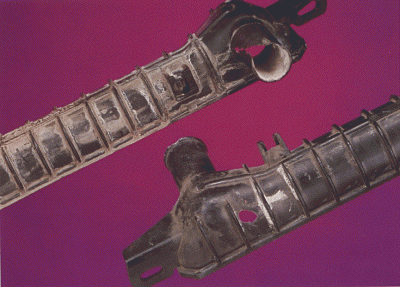

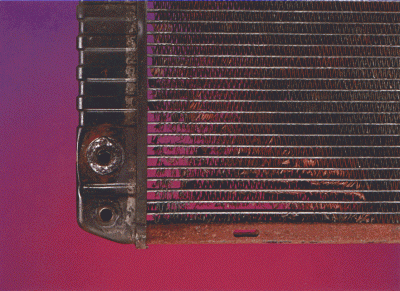

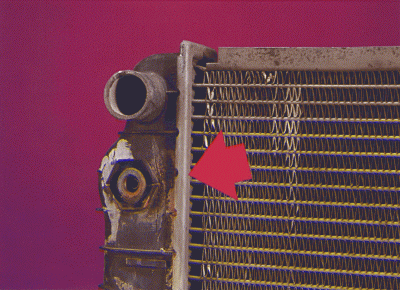

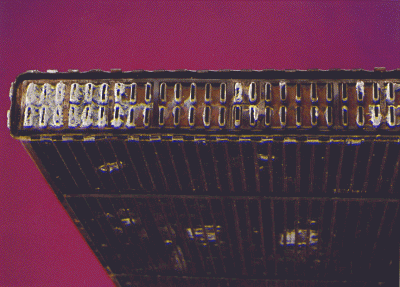

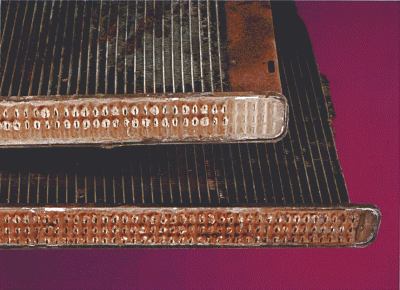

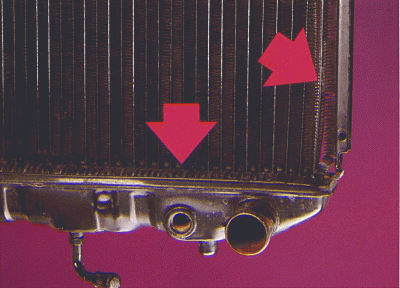

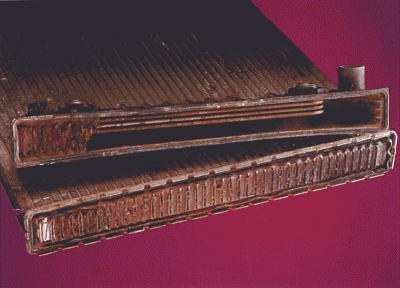

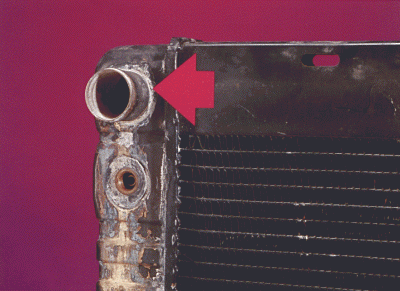

Tube to Header LeaksFailure of the solder joint results in coolant loss. Solder Bloom Solder corrosion caused by poorly inhibited antifreeze. Tube-to header joints are weakened and corrosion can restrict coolant flow. Internal DepositsRust and leak inhibitors can form solids that collect in the cooling system and restrict flow. Fan DamageMinor collisions or a failed water pump can result in damage to the radiator. Blown Tank - to - Header SeamUsually an indication that the radiator has seen extreme pressures resulting from an exhaust gas leak into the cooling system. Cracked Plastic TanksHigh stress in the radiator can cause premature failure of the plastic tanks. ElectrolysisStray electrical current can cause excessive corrosion of metal components. ElectrolysisStray electrical current can cause an electrochemical reaction that will produce voids in tubes. Leaky Tank - to - Header SeamFailure of the solder joint or cracked headers is generally the result of pressure cycle fatigue. Steam ErosionSteam can breakdown the plastic tank which will produce thinning and ultimately holes in the plastic tank. Frequently, white deposits are also found. Fin DeteriorationA chemical deterioration of the fins most often caused by road salt or sea water. Fin Bond FailureA loss of solder bond between fins and tubes. Fins are loose in core. This causes loss of heat transfer and reduces the strength of the radiator. Loose Side PieceCan lead to flexing of the core and radiator tube failure. Leaky Inlet/Outlet Fitting Leaks in this area of the radiator can be caused by fatigue or by corrosion of the solder joint. Leaky Oil Cooler FittingCaused by failure of the solder joint between the radiator tank and oil cooler. Over PressurizationExcessive pressure in the radiator caused by a defective pressure cap or engine exhaust gas leak can destroy the radiator.
Even a skilled cooling system professional can't work miracles on a radiator that's severely corroded or damaged. The only solution is a new radiator, and the best solution is an all-new Modine complete radiator. Modine complete radiators give you the assurance of long lasting performance and efficiency. They're completely new and are designed for your engine and performance needs. Modine radiators fit perfectly, install quickly and easily and are backed by a factory warranty.
Some radiator problems can be effectively solved with a new copper/brass or aluminum core. Recoring can bring your radiator back to efficient operating condition using old tanks, brackets and transmission oil cooler. Your cooling system professional will help you determine whether recoring is a viable alternative. A new core comes with a limited factory warranty, the reused parts cannot be factory warranted against failure.
Minor radiator problems can often be repaired, although you should be aware that repairing is frequently a short-term solution to a long-term problem. Copper/brass radiators are bonded with solder, which can deteriorate and corrode. The newer aluminum radiators are somewhat more durable, but are also more difficult to repair. Plastic tanks on many newer cars present a different set of problems, but in most cases can be replaced. For all radiators, higher engine temperatures increase expansion and contraction. Before risking failures and costly engine and transmission damage, consult with a cooling system professional who can advise you of your replace, recore and repair options.
We Thank Modine for giving us permission to use this chart of reference.
